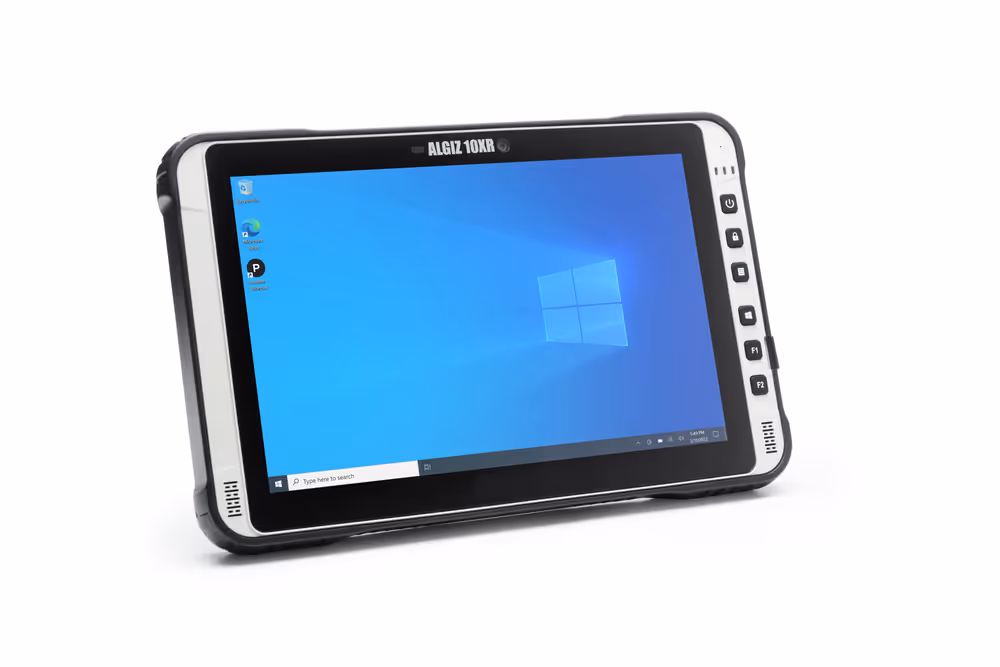

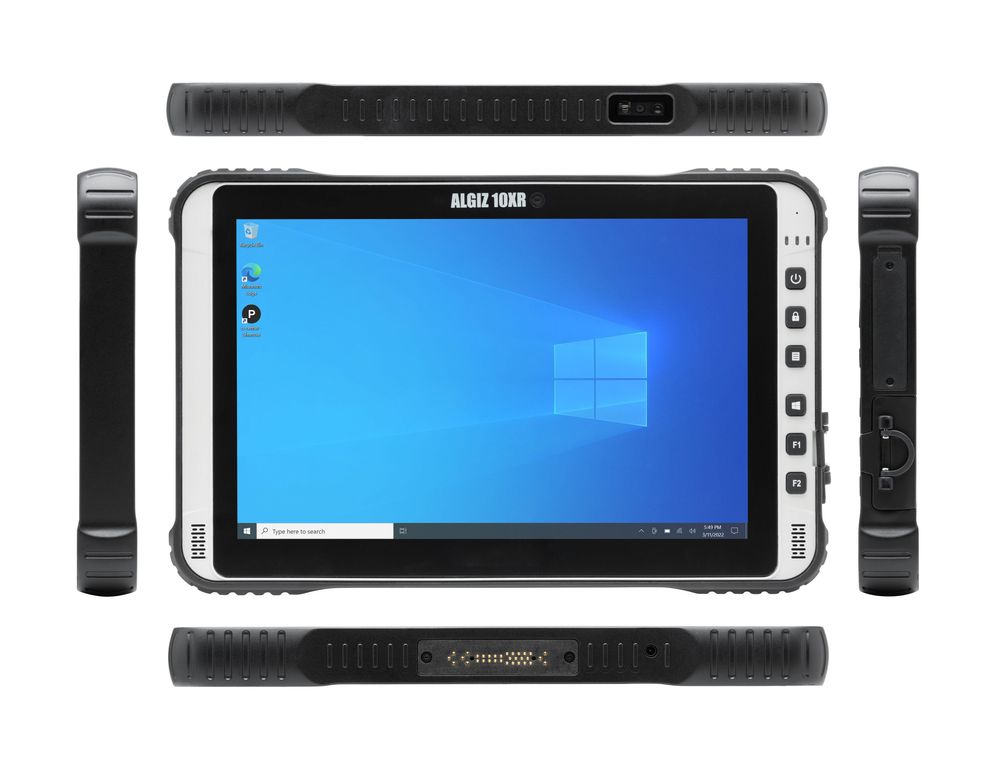

Algiz 10XR
Technical specifications
- Dimensions
- 282 x 182 x 265,5 mm
- Weight
- 1.250 g
- Processor
Intel Elkhart lake
Atom® x6413E 1.50 GHz (3.00 GHz boost) 64-bit quad-core
- Graphics
- Intel® UHD Graphics for 10th Gen Intel® Processors
- RAM
- 8 GB
- Storage
- 128 GB
- Operating System
- Windows® 10 Enterprise LTSC (64bit)
- Display
10.1″ capacitive multi-touch (10 points)
1.920 × 1.200 pixels
Sunlight readable, 850 Nits
Glove/rain mode
Chemically strengthened glass
- Buttons
Front:
Power, touch mode, menu, home, F1, F2
- Battery
Standard:
11,55 V, 3.520 mAh (40.66 Wh), hot-swappable
Extended:
10,8 V, 6.700mAh (72.4 Wh), hot-swappable
- Ports
5.5mm DC-in barrel power jack
1 x USB C 3.0 Support charging and display port.
1 x USB C 3.0 output 5V/3A
1 x USB A 3.0
Docking connector
1x micro SDXC
1x micro SIM- Communication
Cellular (WWAN):
5G, 4G/LTE, Verizon 5G, Sierra Wireless EM9191
Wireless LAN:
802.11ac, a/b/g/n, 2.4GHz/5GHz
PAN:
BT v5.0
Audio:
Front-facing stereo Speaker, Microphone
- Positioning
Dedicated GNSS Ublox NEO-M8U Receiver
GPS/GLONASS/Galileo/BeiDou, SBAS
- Cameras
Rear:
12 megapixel with auto-focus and flash
Front:
5 megapixel
- Sensors
9-axis sensor (Gyro, Accelerometer, magnetometer)
Light sensor to automatically adjust backlight- Data collection
- Environment
Operating:
-20°C to 60°C, MIL-STD-810G, Method 501.5/502.5 Procedures II, III
Storage:
-40°C to 70°C, MIL-STD-810G, Method 501.5/502.5 Procedure I
Drop/shock:
26 drops from 1.2 m, MIL-STD-810G, Method 516.6 Procedure IV
Vibration:
MIL-STD-810G, Method 514.6 Procedure I
Sand and Dust:
IP65, IEC 60529
Water:
IP65, IEC 60529
Humidity:
MIL-STD-810G, Method 507.5 Procedure II
Altitude:
4572 m, MIL-STD-810G, Method 500.5 Procedure I
