Mounting instructions for Algiz 8X WWAN upgrade
Last updated: 2025-05-20
Related products: Algiz 8X
Requirements
- Tweezer
- Phillips-tip screwdriver
- Torx T8 screwdriver
Instructions
1. Remove the main battery and open the service hatch window.

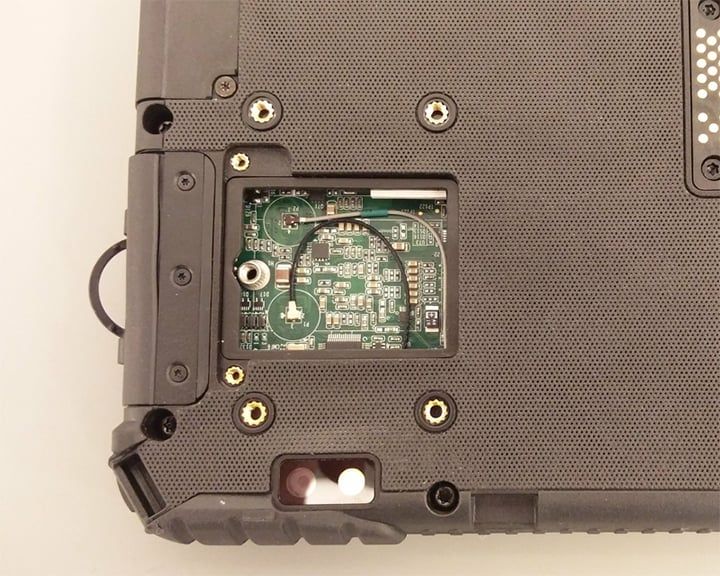

2. Carefully release the two antenna cables from the mainboard using the tweezer.

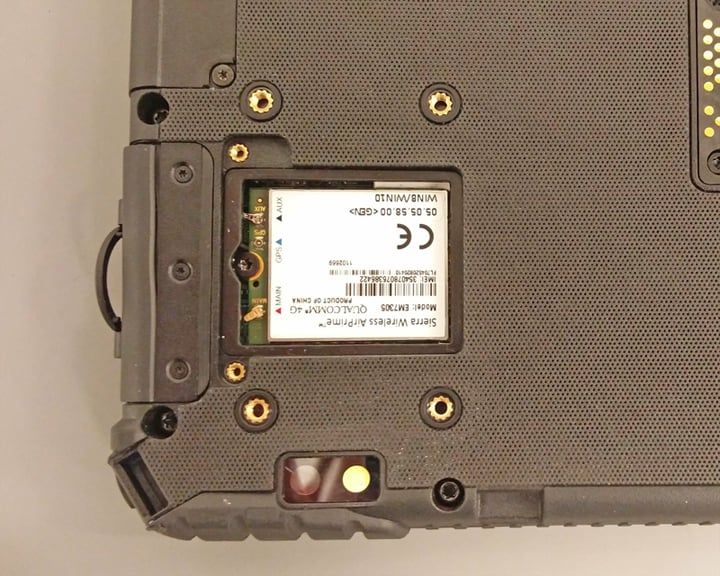

3. Move the cables to the lower right corner, insert WWAN module (modem) and fix it with the screw.

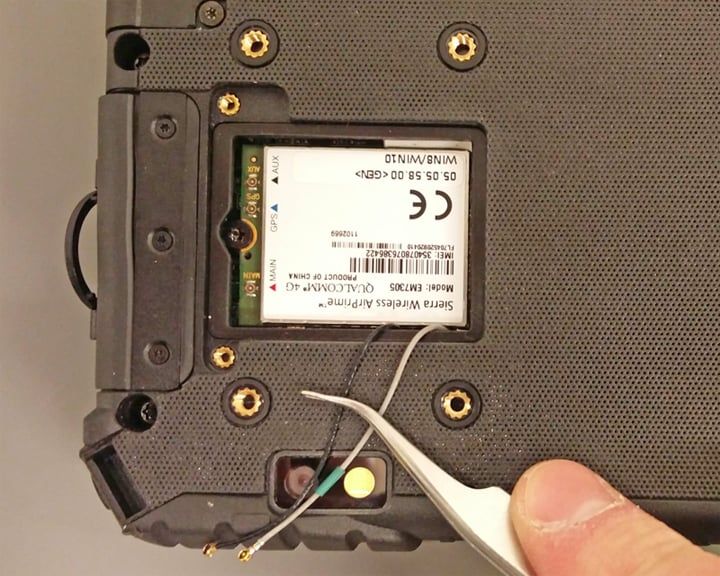

4. Connect the grey cable to AUX and the black to MAIN using the tweezer.
Move the cables under the back cover.
5. Mount the service hatch window and insert the main battery.
