Mounting instructions for Algiz 10XR WWAN upgrade

Requirements

• Tweezer
• Torx T6 screwdriver
• Torx T8 screwdriver

Instructions

1.
Shut down the unit. Remove AC charger and main battery.
Remove the 5 screws using a Torx T6 screwdriver.
Remove the RAM/modem covery by lifting it up carefully.

2.

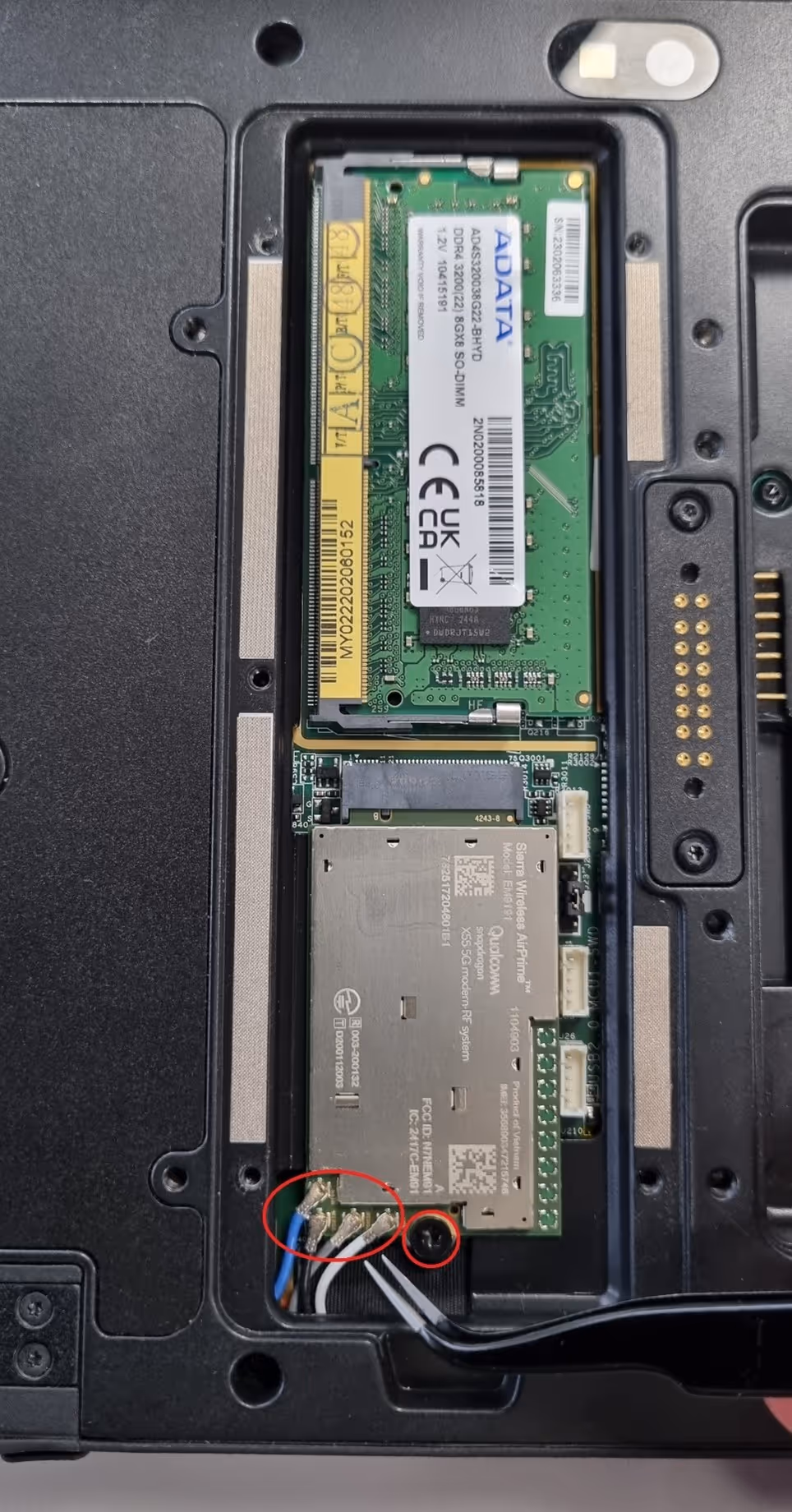

Install the modem and secure it with black screw using Torx T8 screwdriver.
Connect the 4 pcs. antenna cables to the modem using the tweezer.

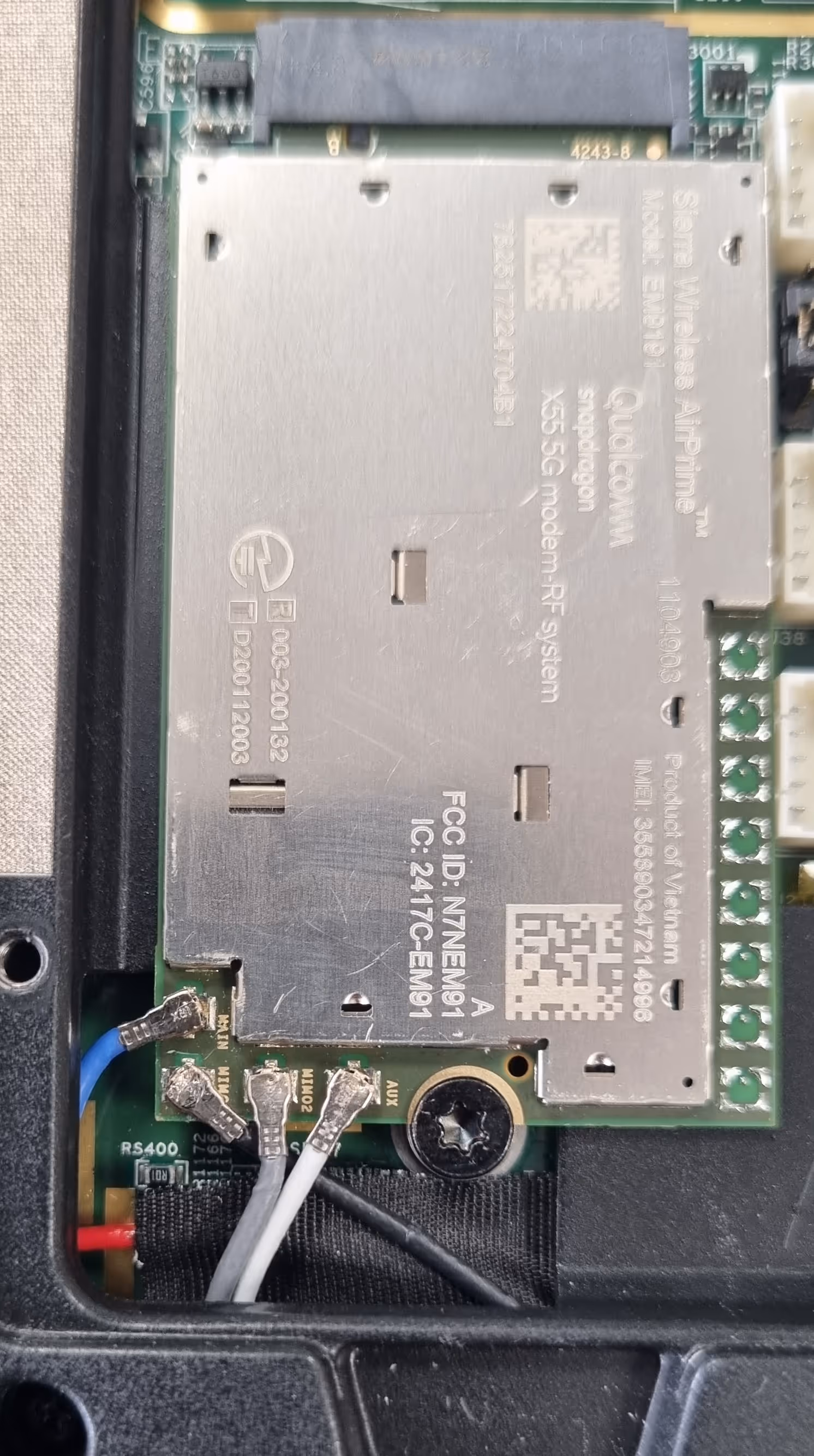

Important: Make sure that you connect antenna cables according to the picture below !

3.
Mount the RAM/modem covery with the 5 screws using a Torx T6 screwdriver.
