GNSS: Enable GNS-record output for NMEA on Algiz 10XR

By default the output of GNS-record for NMEA is disabled. To enable the output, follow the steps below.

1.  Open u-center.

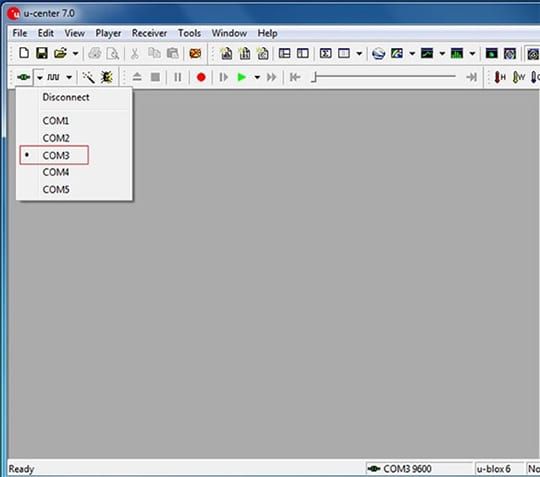

2. Connect to GPS module (default port is COM3, baudrate 9600):

3. Go to View > Configuration View.
4. Click MSG (Messages) on the left side list.

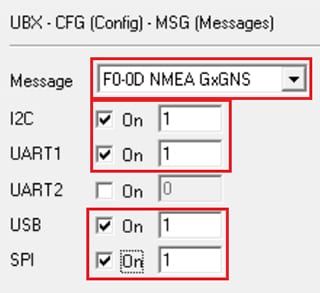

5. At Message select the entry F0-0D NMEA GxGNS. Check the boxes I2C, UART1, USB, and SPI and enter 1 in all four On fields:

6. Click the Send button in the lower-left corner:

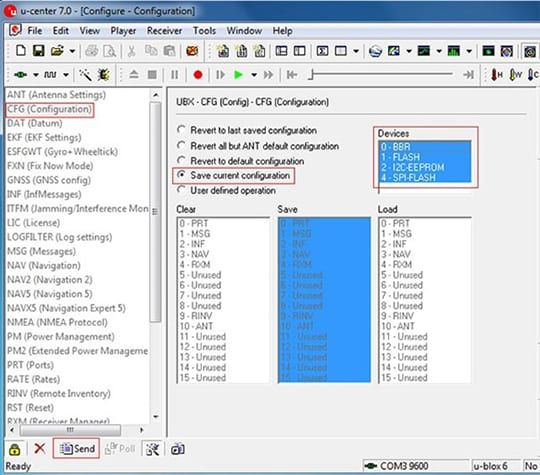

7. Switch to CFG (configuration) tab in left side list and select Save current configuration. At Devices: select all 4 list entries. (To select all entries, tap and hold the pen/mouse on the first entry and move down to the last entry. Release pen/mouse). Then click the Send button in the lower-left corner:

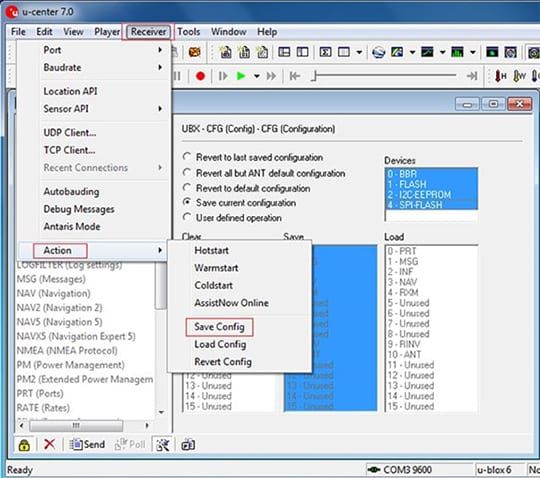

8. Click Receiver > Action > Save Config:

9. Close u-center.
