GNSS: Change u-blox GPS mode to Automotive on Algiz tablets

There is a setting in the u-center program, that solves a problem where the GPS doesn’t update the position when you are moving. The following solution improves the GPS when moving around.

1.  Open u-center.

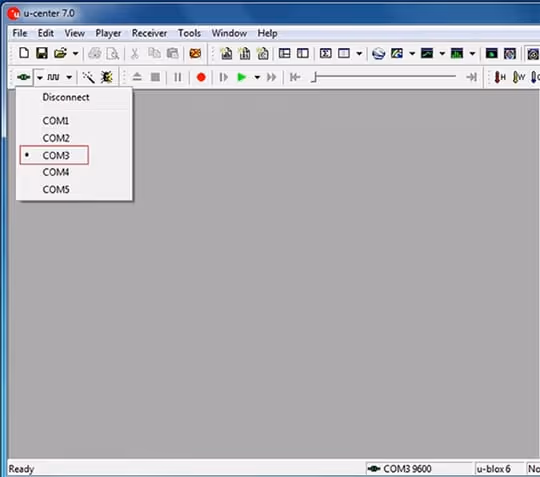

2. Connect to GPS module (default port is COM3, baudrate 9600).

3. Go to View > Configuration View.

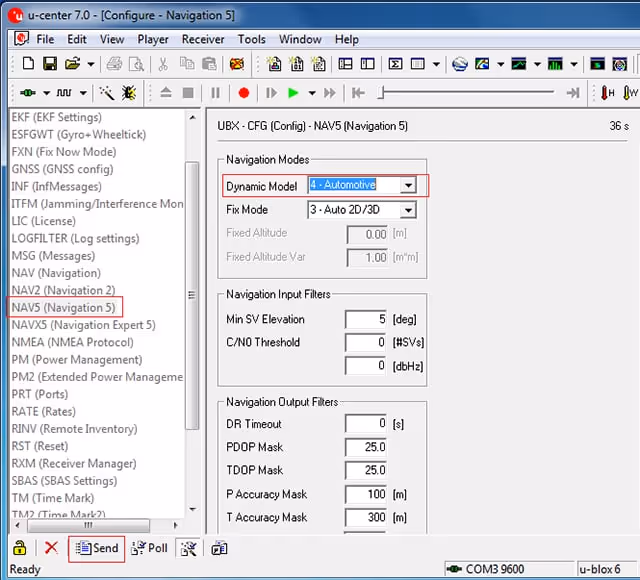

4. Click NAV5 (Navigation 5) on the left side list.
5. Set Dynamic Model to 4 – Automotive.
6. Click the Send button in the lower-left corner.

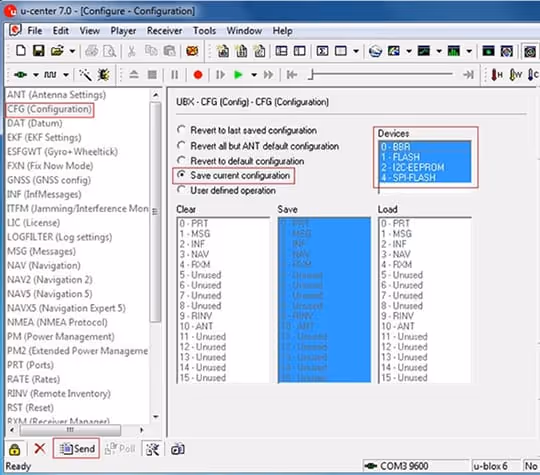

7. Switch to CFG (configuration) tab in left side list. Select “User-defined operation“. At Devices: select all 4 list entries. Make sure that all entries at Save are selected (to select entries, tap and hold pen/mouse on first entry and move down to last entry and release pen/mouse). Click the Send button in the lower-left corner.

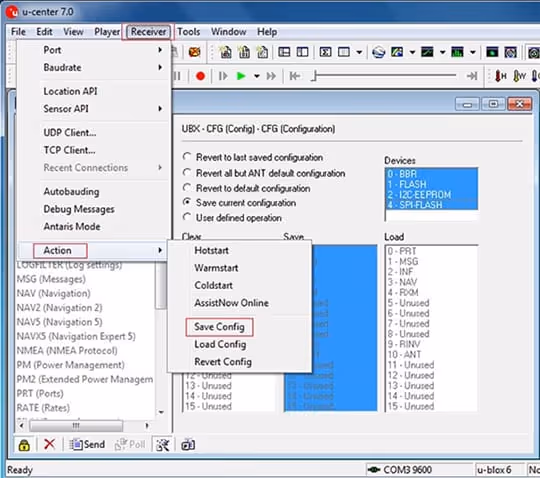

8. Click Receiver > Action > Save Config.

9. DONE!
