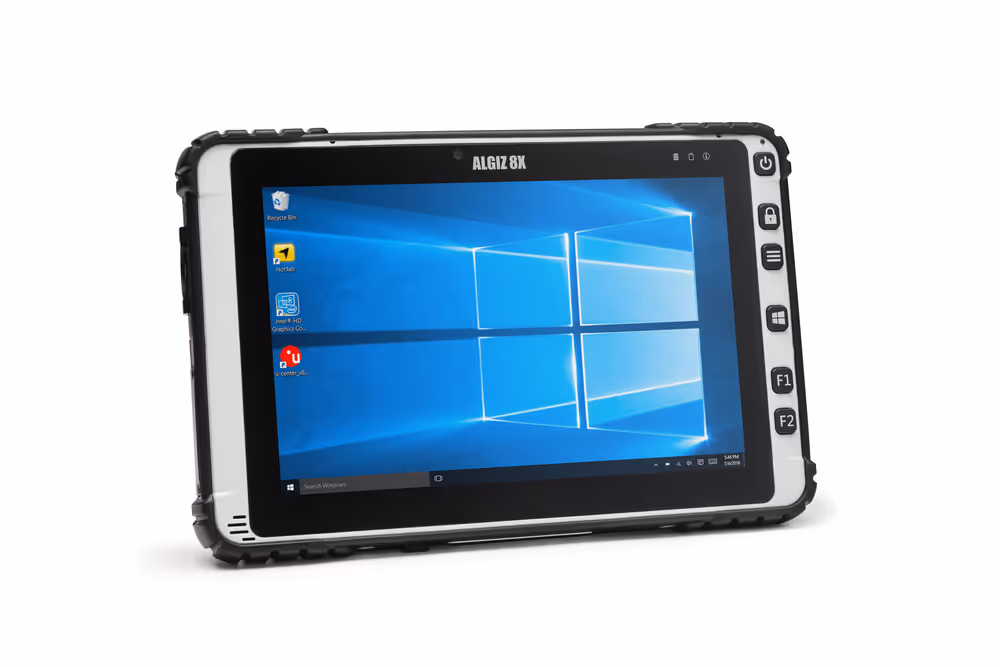

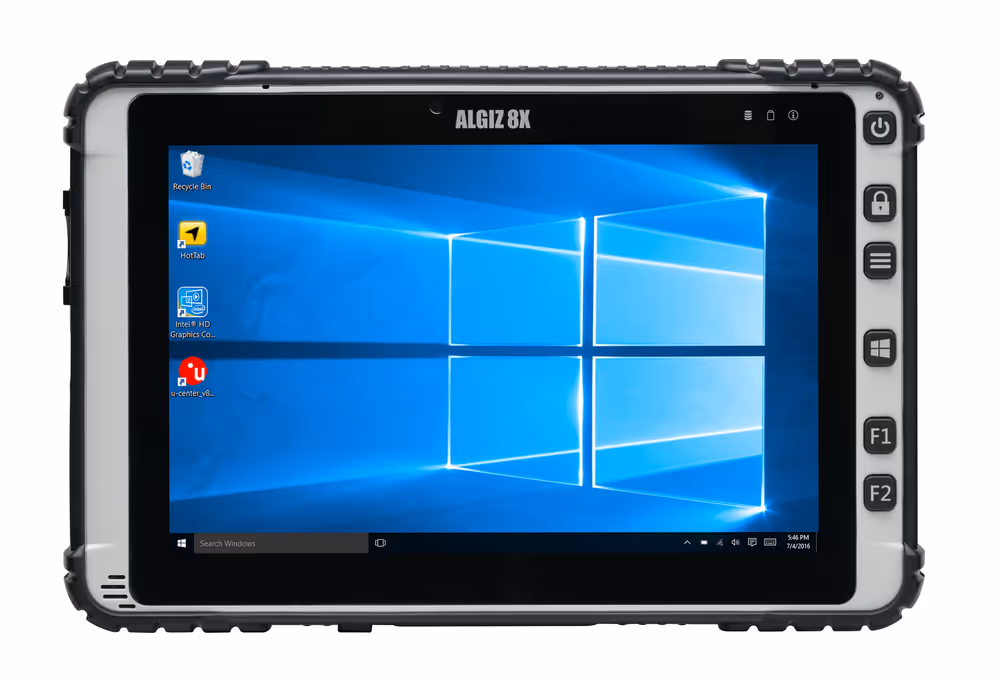

Algiz 8X
Tekniska specifikationer
- Dimensions
- 225 x 147 x 24 mm
- Weight
- 990 g
- Processor
Intel® Pentium® Prozessor N3710 (2.56 GHz Boost)
64-Bit Quad-Core
- Graphics
- RAM
- 4 GB, optional 8 GB
- Storage
- 128 GB
- Operating System
- Windows® 10 Enterprise CBB (64 Bit)
- Display
8” Capacitive Touchscreen with chemically strengthened glass.
600+ Nits
Rain Mode and Glove mode
Supporting active pen
Resolution 1.280 x 800
- Buttons
Power, touchscreen mode, menu, home, F1, F2
- Battery
Standard:
5.200 mAh (39.52 Wh), 7.6V
Extended:
10.050 mAh (76.38 Wh), 7.6V
Hot-swappable lithium-ion battery pack
- Ports
Connections:
1 x DC power port
2 x USB Host 3.0 Type A
1 x Micro HDMI
Micro SDXC, Micro SIM
Docking Connector:
Charging
GPS antenna pass-through
WWAN antenna pass-through
Multipurpose docking connector
Expansion:
LAN port
COM port (Serial, UART Only)
Barcode reader
- Communication
Cellular (WWAN):
2G, 3G, 4G/LTE, Sierra EM7305 (EU. M.2 Type)
Wireless LAN:
802.11 ac, a/b/g/n 2.4 GHz and 5 GHz
PAN:
Integrated BT v4.2 LE
Audio:
Speaker
- Positioning
Integrated u-blox® GPS/GLONASS (NEO-M8N)
- Cameras
Rear:
8 megapixel with autofocus and LED flash
Front:
2 megapixel
- Sensors
Light sensor
- Data collection
Optional 2D Barcode scanner
- Environment
Operating:
-20°C to 60°C, MIL-STD-810G, Method 501.5 Procedure II
Storage:
-40°C to 70°C, MIL-STD-810G, Method 501.5/502.5 Procedure I
Drop:
26 drops from 1.22m, MIL-STD-810G, Method 516.6 Procedure IV
Vibration:
MIL-STD-810G, Method 514.6 Procedures I & II
Sand and Dust:
IP65, IEC 60529
Water:
IP65, IEC 60529
Humidity:
0 ～ 95% (non-condensing), MIL-STD-810G, Method 507.5
Altitude:
4572 m, MIL-STD-810G, Method 500.5 Procedure I
